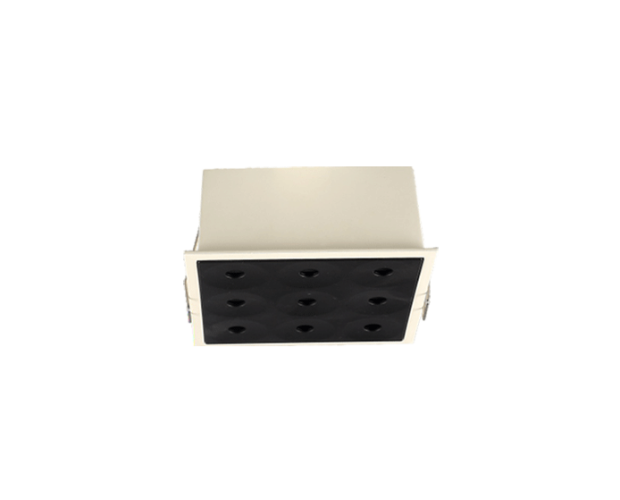

Grille Light Series FDNS103 SMD-9*2W
Technical Data
Code:FDNS103 SMD-9*2W
Name:Grille Light Series
LED Type:SMD
Driver:FIAM Driver
Luminous Flux:1440Lm
Finishwhite/Black
Size:100×100×H42.2mm
Cutout:95*95mm
Beam Angle:15°/24°/38°
Color Temperature:3000K-6000K
IP Classification:20
DimmableNO
InstallationRecessed downlight
Operating Temperature-20°C till+40°C
Life Time50,000hrs
