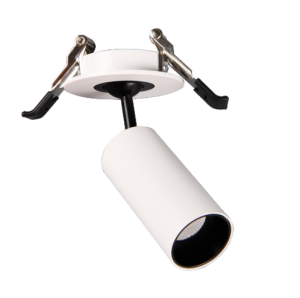

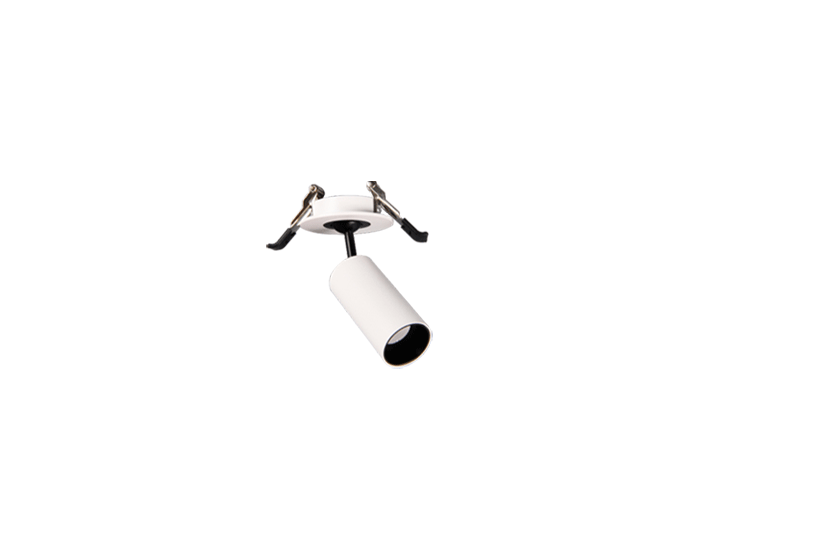

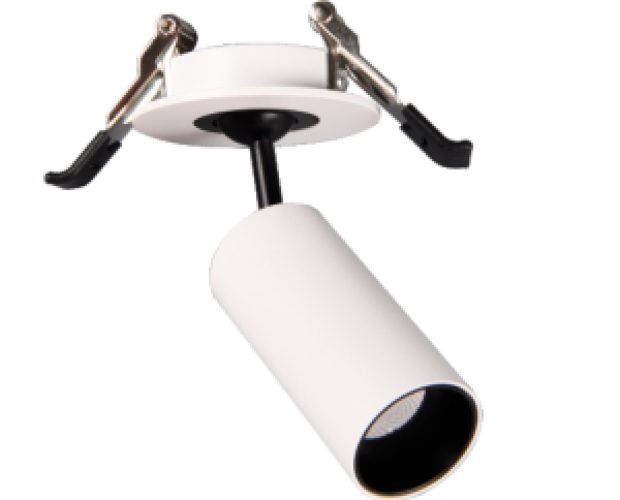

Mini Spotlight Series FDC105R-1 5W
Technical Data
Code:FDC105R-1 5W
Name:Mini Spotlight Series
LED Type:COB
Driver:FIAM Driver
Luminous Flux:500
Finishwhite/Black
Size:ø50×30×H110mm
Cutout:ø40mm
Beam Angle:180°/355°
Color Temperature:3000K-6000K
IP Classification:20
DimmableNO
InstallationRecessed downlight
Operating Temperature-20°C till+40°C
Life Time50,000hrs
Collect
- Product Description
