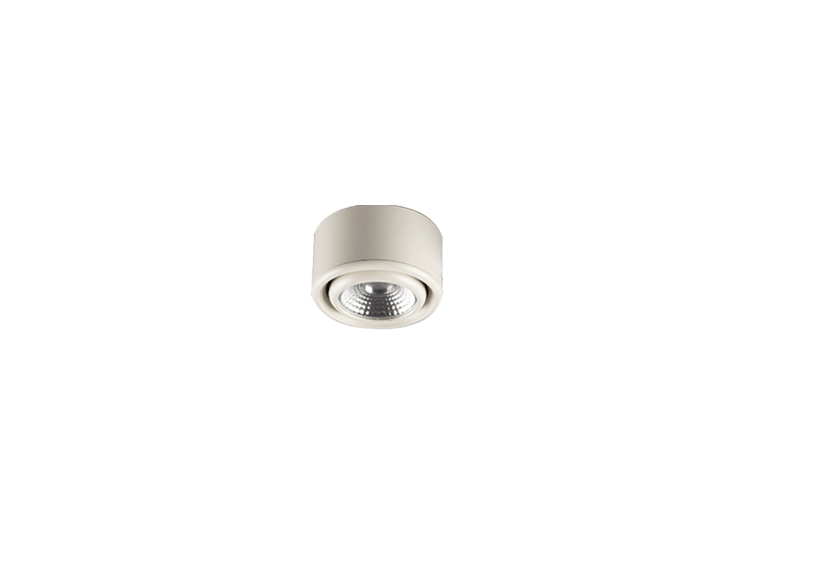

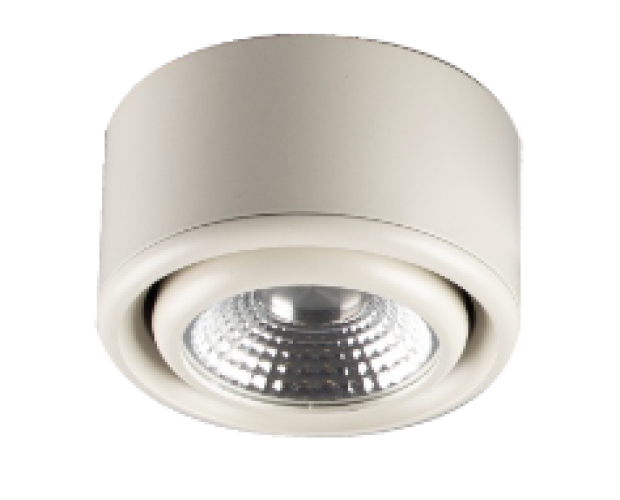

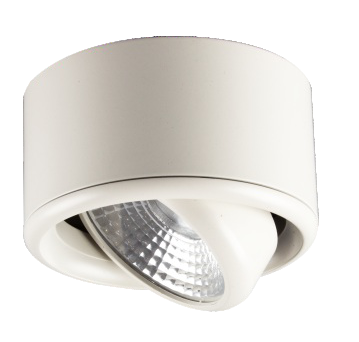

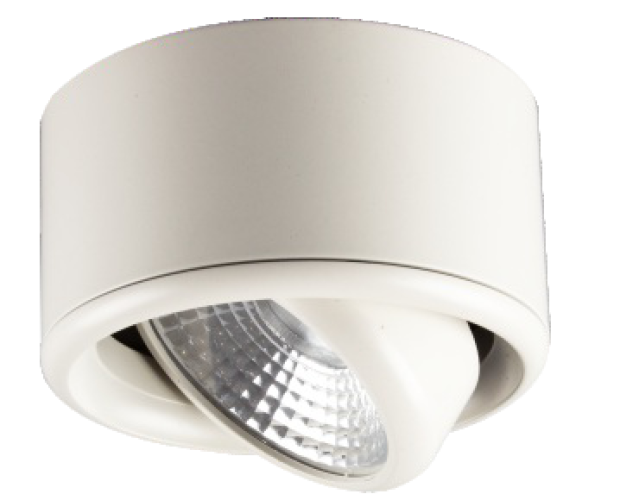

Mini Spotlight Series FSC804R-7W
Technical Data
Code:FSC804R-7W
Name:Mini Spotlight Series
LED Type:COB
Driver:FIAM Driver
Luminous Flux:700
Finishwhite/Black
Size:ø80×H40mm
Cutout:/
Beam Angle:12°/24°/36°
Color Temperature:3000K-6000K
IP Classification:20
DimmableNO
InstallationRecessed downlight
Operating Temperature-20°C till+40°C
Life Time50,000hrs
